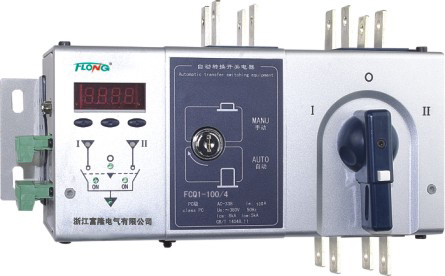

Applicable scope
FCQ1 series automatic transfer switch (A.T.S.) is applicable for AC emergency power supply system of 50Hz, rated voltage 380V below and rated current 100A and less than. Through remote electric control or emergency manual control, it can realize the transfer between normal power and reserve power or between two closing loads, is mainly used the important fields where don’t permit power failure such as the hospital, emporium, bank, chemical engineering, metallurgy, high-rise building, fire control, etc.. The product conforms to the standards of IEC60947-6-1，GB14048.3 and GB/T14048.11.
Type and its meaning

Normal working conditions
1.Altitude: <2000m.
2.Ambient temperature:-5℃一+40 0C.
3.Relative humidity: <95%.
4.Location without explosive hazardous medium
5.Location free of rain and snow attack.
6.Pollution class: III.
Control type of A.T.S.
1.The control voltage of controller and electric operating mechanism is AC 230V.
2.Economy type R:
Type R1:auto-switch-in auto-restoring transfer, zero setting for fire control (double-breaking)
Type R2: auto-switch-in no auto-restoring transfer, zero setting for fire control (double-breaking)
3.Basic type S:
Type S1:auto-switch-in auto-restoring transfer, phase lack protection, under voltage protection, zero setting for fire control, digital display, parameters setting, amendment, external interface equipped
Type S2: auto-switch-in no auto-restoring transfer, phase lack protection, under voltage protection, zero setting for fire control, digital display, parameters setting, amendment, external interface equipped
Performanceafeatures
1.According to the pole number, A.T.S. is divided into three-pole product and four-pole (three-pole +making and breaking neutral pole) product, and in accordance with the power supply, it has nine current classes: 16A, 20A, 25A, 23A, 40A, 50A, 63A,80A,100A.
2.Perfect electromagnetic compatibility (EMC).
3.The actuating motor can automatically select one phase of power supply of two circuits of power supplies that meets the requirements;
4.Selecting the manual or automatic operation way by the key switch.
5.Padlock is available, keeping the position status.
6.Manual, electric, automatic control functions.
7.Detecting the signal after delaying 0.5s that can prevent the error operation;
8.Three-segment product has remote-control "0" position function in the automatic state.

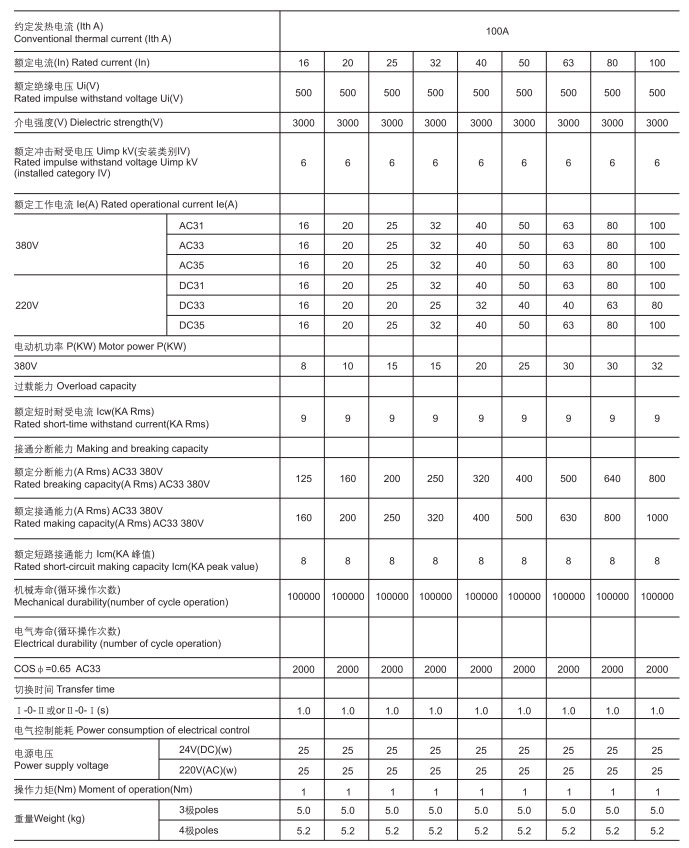

Electrical properties and mechanical properties of automatic transfer switch

Terminal diagram, Outline and Installation dimension of FCQ1-100A

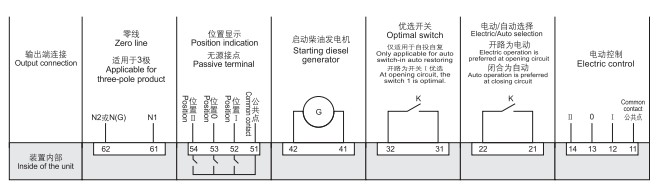

Terminal diagram

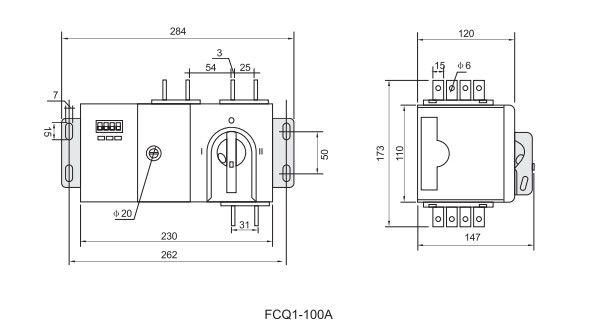

Outline and installation dimension
