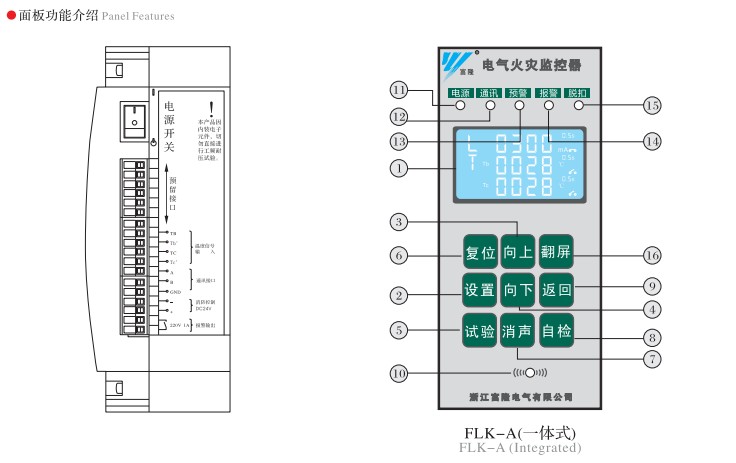

FLK electric fire monitor panel Function
.LCD
(1) LCD display, numerical display LCD
.Kay Note
(2) sat the key: to enter the menu or determine function keys can be done by setting the warning value of leakage current, leakage current alarm value, leakage treatment, temperature alarm value, address coding, release mode, trip delay time parameter. Leakage alarm value is set to not more than :i00mA, the temperature alarm settings should not exceed l;iU℃
(3)(4> up and down buttons: buttons for menu options with the set value changes with the parameters set
(5) Test button: Analog issued lUUmA leakage current test on the equipment alarm performance
(6) Reset button: reset the monitor equipment
(7) silencer button: In the alarm, use "silencer" button to remove the alarm sound, but in the alarm condition is triggered once the case, monitor -rmgtog
(8) (9): self / Return key: In the casa of the main interface, press "salf test" button is used to monitor the function to be checked. During setup, t1 conditions to enter the menu To return to the previous case a menu function .Buzzer instructions
(10) buzzer, to achieve the alarm sounds .Signal Description
(11) Power lights (yellow): display monitors the work of state power
(12) communication signals (green): display monitor communication status
(13) warning lights (yellow): display monitor early warning status
(14) alarm signal (red): display monitor alarm
(15) trip signal (color): red for tripping green indicates return status
(16) scroll off: View screen current and voltage, leaka.ee and temperature (FLK-A one) |
